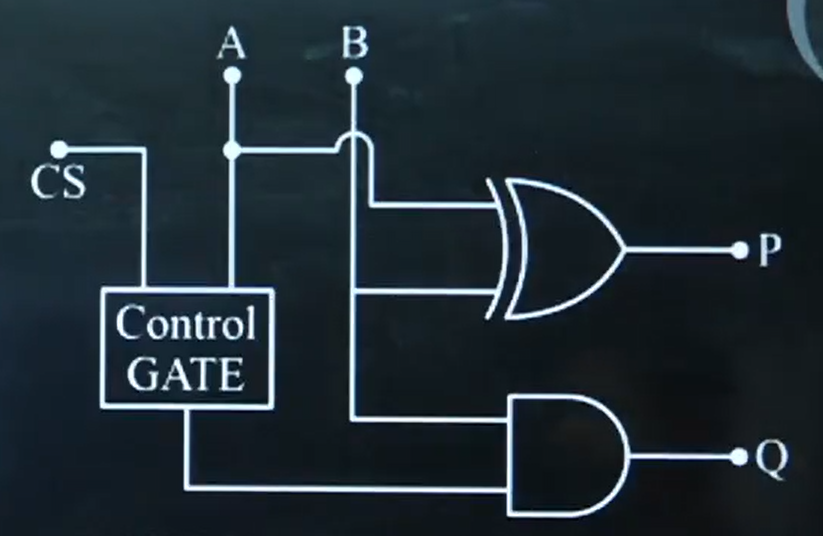

Observe the logic circuit image and answer the question. If A = 1, B = 0, and CS = 1, enter the output value of Q.
Observe the logic circuit image and answer the question.
If A = 1, B = 0, and CS = 1, enter the output value of Q.
Answer
0
Theory
This demo verifies that images imported through Admin Import render correctly in the theory section.
The lower output Q is produced by an AND-style path, so if any required input is 0, the output is 0.
Solution
Use the same circuit image while checking the lower output path.
Given B = 0, the lower AND path output becomes 0. Therefore, Q = 0.
